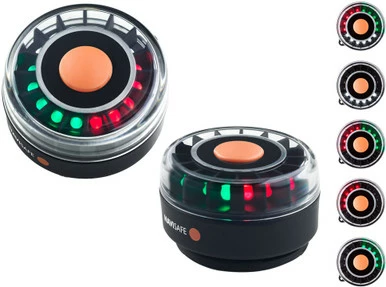

Navisafe Portable Navilight 2NM – Tricolor

Portable Navilight 2NM – TriColor

The Navilight Tricolor 2NM – US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5°. The white Sternlight shows an unbroken light over an arc of the horizon of 135°. All lights work independently, in a combination of all three or red/green together.

Examples of usage:

*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs

On a power-driven vessel of 12M or more in length but less than 50M in length:

• As green or red sidelight
• As sternlight

On a power-driven vessel of less than 12M in length:

• as green or red sidelight
• as combined green / red
• as sternlight

On a sailing vessel underway:

• as green or red sidelight
• as sternlight

On a sailing vessel of less than 20 meters in lengths as backup light:

• Tricolor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135° white, 112,5° red, 112,5° green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20M) and air-tight
• Includes magnet bracket, mounting screw, 3 lanyards for multiple fixing and securing
• Powered by three AAA batteries (not included)
• Size: H = 35mm, Diameter = 68mm
• Weight (net): 118g

Modes / approximate burn time:

• 16 green / red / white LED, 360° TriColor lantern / 12hrs
• 10 green / red LED, 225° Bi-Color sidelight / 20hrs
• 5 green or 5 red LED, 112,5° sidelight / 38hrs
• 6 white LED, 135° Sternlight / 32hrs

Mounting System

The double magnetic system consists of the Navilight with its magnetic base, a separate magnetic plate and a screw for attaching the plate to a wooden deck for example. It also holds the light safely on many plastic boats, biminis or any other material by placing the light on top and the magnetic plate underneath. Additionally Navisafe offers a wide range of specially designed magnetic mountings such as the Clamp-on Rail mount, Bendable Suction-mount and the Telescopic Poles that easily allow the lights to be attached.
