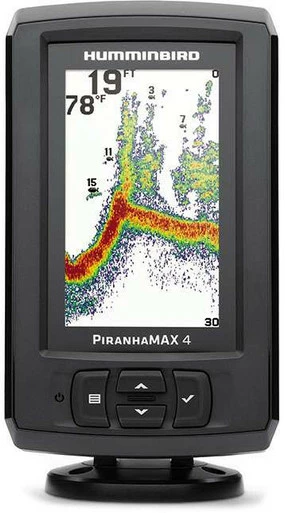

Humminbird Piranhamax 4

With modern styling and a large 4.3 in. color LCD, the Humminbird Piranhamax 4 provides a fresh perspective on what’s below your boat. A redesigned, even easier-to-use interface, Fish ID+, fish alarms & depth alarms, and zoom all come together for a simple but fruitful experience. Feature for feature, it packs a technological chomp that no fish finder in its class can match.

Humminbird 410150-1 Piranhamax 4 Features:

• Dual Beam Sonar: Choose between a narrow and wide beam for great detail or a generous coverage area, helping you identify fish, contours, and structure.
• Tilt and Swivel Mount: Quickly adjust your viewing area angle.

Humminbird 410150-1 Piranhamax 4 Specifications:

• Series: PiranhaMAX
• Display Size – Diagonal: 4.3 in.
• Display Pixel Matrix: 272H x 480V
• Sonar-Standard: Dual Beam
• Sonar-Coverage: 28° & 16° @ -10dB
• Sonar-Frequencies Supported: 200/455kHz
• Depth-Sonar: 320 ft (20) 455 kHz, 600 ft (20) 200 kHz
• Depth-Down Imaging: 320 ft
• Interface: Keypad Control
• Memory Card Slot: None
• Power Draw: 180 mA
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 2400 Watts
• Power Output RMS: 300 Watts
• Screen Snap Shot: Not Supported
• Mount-Standard: Gimbal
• Mount-Standard Size: 3.91 in. W x 7.34 in. H x 3.62 in. D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 3.91 in. W x 5.875 in. H x 2.5 in. D
• Transducer Included: XNT 9 28 T
• Transducer Mount Location: Transom
• GPS Chartplotting: Not Supported
• GPS Receiver: Not Supported
• GPS Trackplotting: Not Supported
• Humminbird Basemap: Not Supported
• LakeMaster Compatibility: No
• Platinum Compatibility: No
• Target Separation: 2.5 in.
• Upgradable Software: No
• Display Colors Grayscale: 256 Color
• Display Type: Color TFT
• Speed: Not Supported
• Temperature: Built In
• UPC: 82324048708
