Garmin 010-01738-03-GT23 GPSMAP 742xs W/ GT23M Transom Mt Transducer

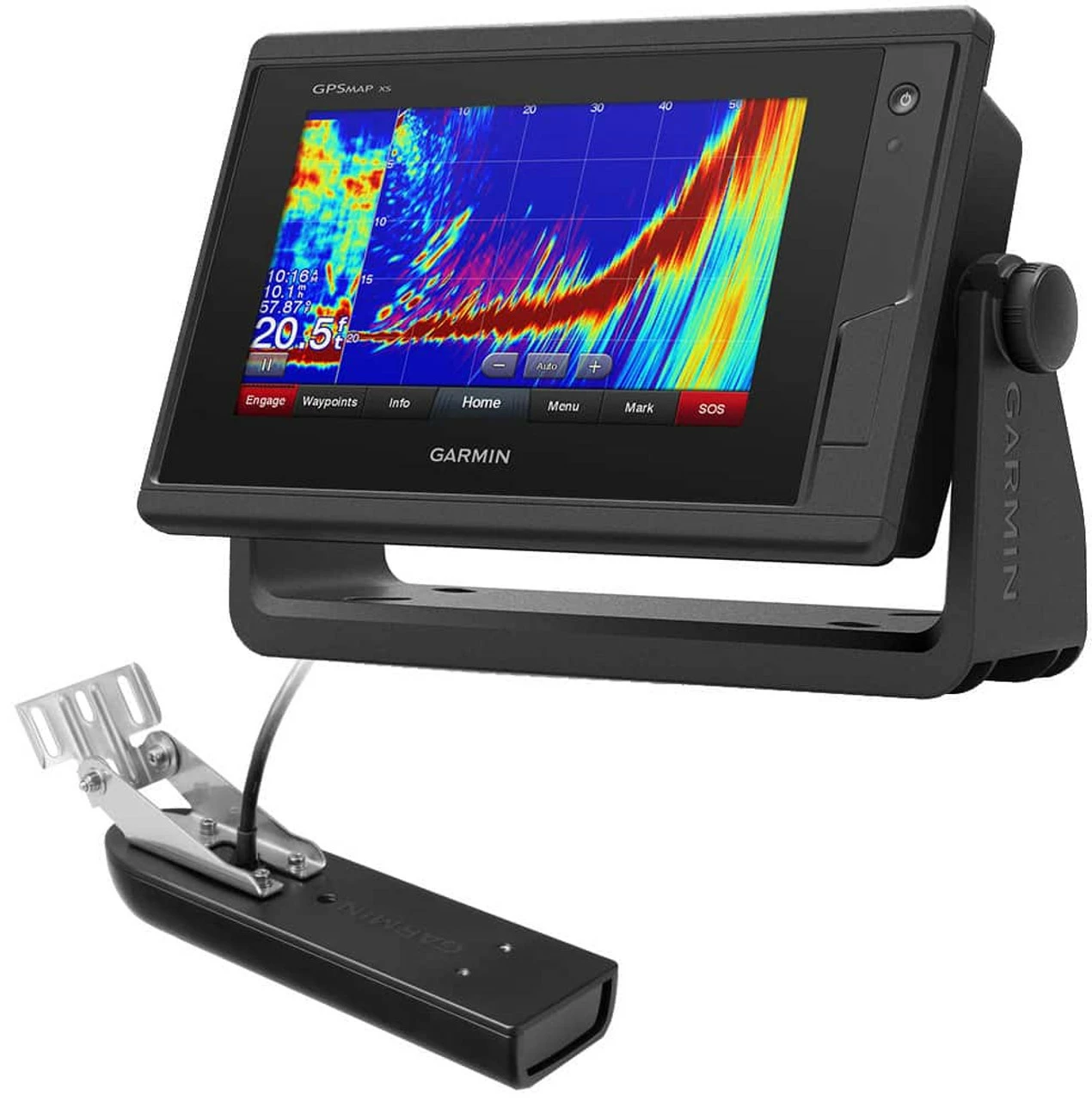

GPSMAP® 742xs w/GT23M Transom Mount Transducer

7-inch Touchscreen Chartplotter/Sonar Combo

• 7-inch high-resolution intuitive touchscreen controls
• NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more
• Garmin Marine Network support for sharing sonar, including Panoptix™ sonar, maps, user data, radar and IP cameras among multiple units
• Preloaded with both BlueChart® g3 U.S. coastal and LakeVü HD maps featuring Navionics® data and Auto Guidance¹ technology

Experience an advanced navigation solution with this compact 7-inch GPSMAP 742xs touchscreen combo. Includes wireless connectivity features for Garmin mobile apps, NMEA 2000 support and Garmin Marine Network capabilities for radar and Panoptix all-seeing sonar, including Panoptix FrontVü collision avoidance sonar. It also has built-in Garmin CHIRP and CHIRP ClearVü sonar (transducer sold separately).

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities to your boat. Garmin Marine Network support allows sharing of sonar, including Panoptix sonar, maps, user data, Garmin radar and IP cameras among multiple units. Plus, there’s NMEA 2000 and NMEA 0183 support for connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar and CHIRP ClearVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen, for example, radar, time of day or GPS speed.

Heading and Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Preloaded with Exceptional Garmin Cartography

LakeVü g3 inland maps and BlueChart® g3 coastal charts provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics® data and Auto Guidance¹ technology. LakeVü g3 and BlueChart g3 include Auto Guidance¹, which uses your desired depth and overhead clearance to calculate routes and provide a suggested path to follow. LakeVü g3 provides coverage on more than 17,000 lakes with up to 1’ contours. BlueChart g3 also includes NOAA raster cartography, available as a free downloadable feature via the ActiveCaptain® app. Additionally, they both offer easy-to-use features such as Depth Range Shading and Shallow Water Shading, which let you view your target depth to avoid running aground.

Upgrade to Our Best Maps on the Water

Accessory map purchases, such as LakeVü g3 Ultra or BlueChart® g3 Vision, add even more features and detail to your maps and charts. LakeVü g3 Ultra and BlueChart g3 Vision add high-resolution relief shading, which provides an easy-to-interpret, clearer view of bottom structure than contour lines alone — plus many other chart and map-enhancing features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps onscreen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

GT23M-TM Plastic, TM Transducer, Mid-Band CHIRP/CHIRP DownVü – 260/455kHz, 500W, 8-Pin

GT23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP DownVü (260/455 kHz) element has a power rating of 500 W.

For installation, follow the included instructions carefully to avoid damaging your boat.

In The Box

• GPSMAP 742xs chartplotter
• GT23M-TM Transducer
• Power cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Connections

• Garmin Marine Network™ Ports: 1
• Transducer Ports: 1 (8 Pin)
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1 (Differential)
• NMEA 0183 Output Ports: 1 (Differential)
• Video Input Ports:  1 BNC
• Video Output Ports: No
• Wireless Connectivity: Yes

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.
