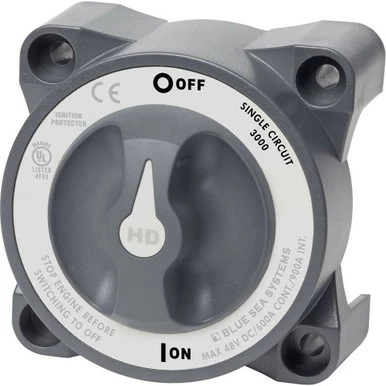

BLUE SEA 3000 BATTERY SWITCH HD ON/OFF
HD-Series Battery Switch Single Circuit ON/OFF
PN:Â Â 3000
600 Amperes Continuous Rating for large diesel engines
- 600 Ampere Continuous Rating
- Accepts two 4/0 battery cables per terminal
- Ignition protected – safe for installation aboard gasoline powered boats
- .870″ (22.01mm) stud length to accept multiple cable terminals
- 1/2″ (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- Fits all Perko and Guest low amperage battery switch hole patterns
| SPECIFICATIONS | |
| Inrush Rating: 0.25 sec (10 repeats) | 2,000 Amperes DC |
| Cranking Rating: 9.75 sec (10 repeats) | 1,200 Amperes DC |
| Intermittent Rating: 5 min (UL 1107) | 900 Amperes DC |
| Continuous Rating: (UL 1107) | 600 Amperes DC |
| Voltage Rating | 48 Volts DC Maximum |
| Case Material | Reinforced Polycarbonate |
| Terminal Hole Size | 1/2″ (M12) |
| Torque | 220 in-lbs. |
MPN: BS-3000 UPC: 632085030001
