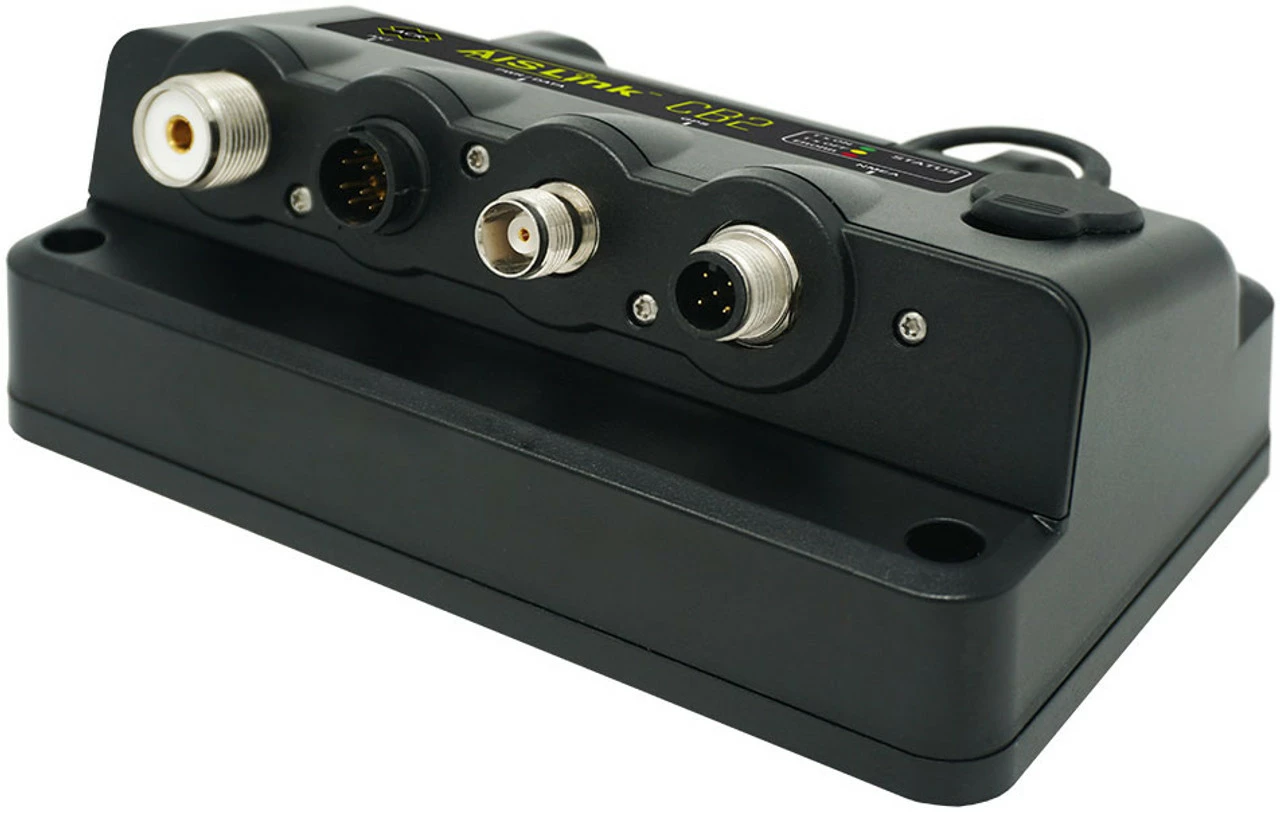

ACR Electronics ACR AISLink CB2 Class B AIS Transceiver

AISLink™ Class B AIS Transceiver

The AISLink CB2 is an advanced safety and collision avoidance solution utilizing the superior SOTDMA access system. Providing the same transmission priority as Class A AIS transponders, the AISLink CB2 features primary benefits including a faster reporting rate and higher output power.

The AISLink CB2 AIS Transponder is a fully compliant, waterproof Class B Transponder designed to help avoid collisions. Using advanced SOTDMA technology, the AISLink CB2 features inherent advantages, including a faster reporting rate and a higher output power, in relation to all CSTDMA Class B products on the market.

Utilizing 99 acquisition channels and 33 tracking channels, the internal multi-GPS receiver continuously transmits your vessel information including position, speed, course and heading, ensuring an indication of the most accurate global positioning at all times. In addition to transmission of dynamic vessel information, the AISLink CB2 also continuously transmits static information including vessel name, call sign, vessel type, vessel dimensions, and MMSI number.

Programming static information into the AISLink CB2 proves effortless as the user has the ability to simply upload this information via Wi-Fi using ACR’s free mobile app. For increased flexibility for the maximum number of users, the app is conveniently available from either the App Store (Apple) or the Google Play Store (Android).

Upon completion of the quick and easy installation process, the AISLink CB2 receives and interprets messages from other AIS equipped vessels within range and then seamlessly communicates this information to other navigation devices on your vessel such as chart plotters, laptops or mobiles using the CB2’s NMEA 0183, NMEA 2000®, USB or WiFi outputs.

A primary benefit that users can rely on is the transmission priority provided by the AISLink CB2 due to the use of the SOTDMA access scheme versus CSTDMA. Use of SOTDMA guarantees the same AIS transmission priority as a class A transponder, ensures a faster reporting rate with transmissions every 5 seconds instead of every 30 seconds, and also ensures a higher output power of 5 Watts instead of 2 Watts. These features not only allow the CB2 to convey a more “real-time” picture of your vessel’s position, but also enables your transmissions to reach further.

Additional benefits include a multi-color LED indicator light communicating the ongoing operational status of the unit. Given that the CB2 also comes complete with an external GPS  antenna, users have the ability to be transmitting AIS messages and enjoying the many benefits of the AISLink CB2 within minutes of install.

The AISLink CB2 provides a significant advantage in navigational safety, giving you the peace of mind that your vessel will be seen day or night on even the busiest waterways, regardless of what the weather may be.

As a leader in life-saving marine products for both professional and recreational use, ACR provides unparalleled safety and peace of mind with the AISLink CB2 AIS Transponder.

Features:

• Internal 99 Channel GPS Receiver
• Micro USB Connection
• WiFi Connection
• Free Moblie App
• Simple Installation
